Abacus Elements Level Access Wetroom Kit 900 X 900mm Offset Waste

Corner Drain – Elements Level Access Wetroom Kit 900 x 900 x 30mm

Data Sheet & Fitting Instructions

The shower tray is 30mm high and is typically recessed into timber floors. The drain must be able to sit between the joists or in a channel on a screeded floor. The waterproof boards are 10mm high.

Constructed from a high quality structural hard foam, the Level Access Wet Room Shower Floor is humidity resistant and has a special mortar coating with a glassfibre reinforcement. It is light, strong and an ideal substrate to tile on to.

NB: We recommend the use of 10mm Elements board on the rest of the floor prior to tiling. This is for waterproofing stability of tiles and insulation.

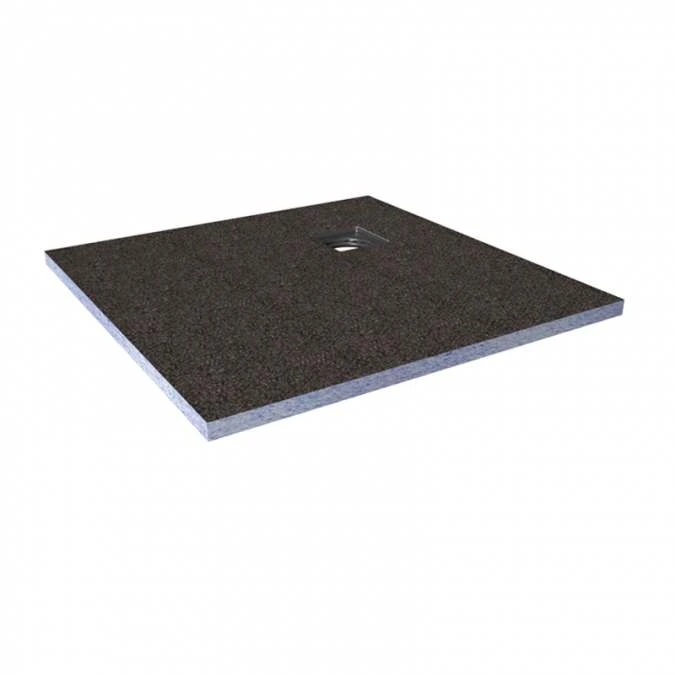

Abacus Wetroom Tileable Tray Square 900mm Level Access

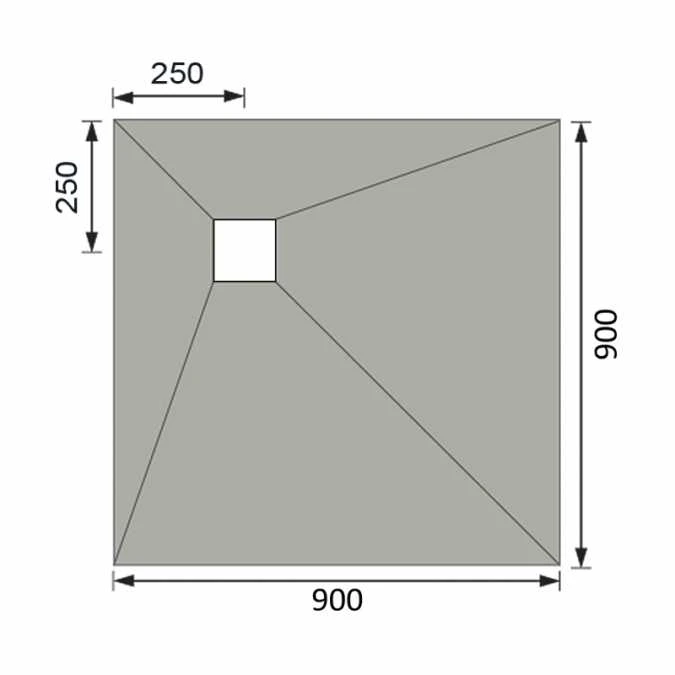

• Shower Tray – 900 x 900 x 30mm
• Previous code EMAP-05-8005

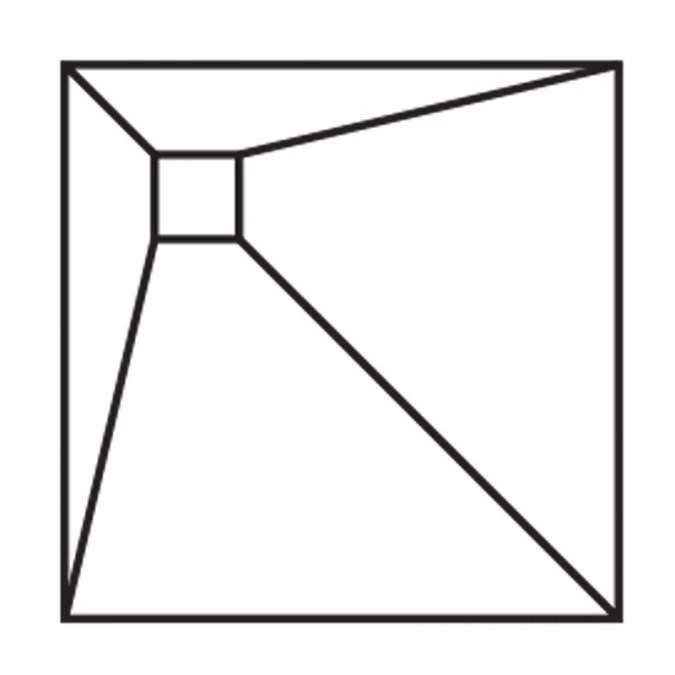

• Square Corner Drain

Note:
Suitable for both timber and screeded floors
Requires an Installation Kit and Waste/Trap

Installation Kit includes

• Flexible Waterproof Tape Adhesive
• Wood Floor Primer

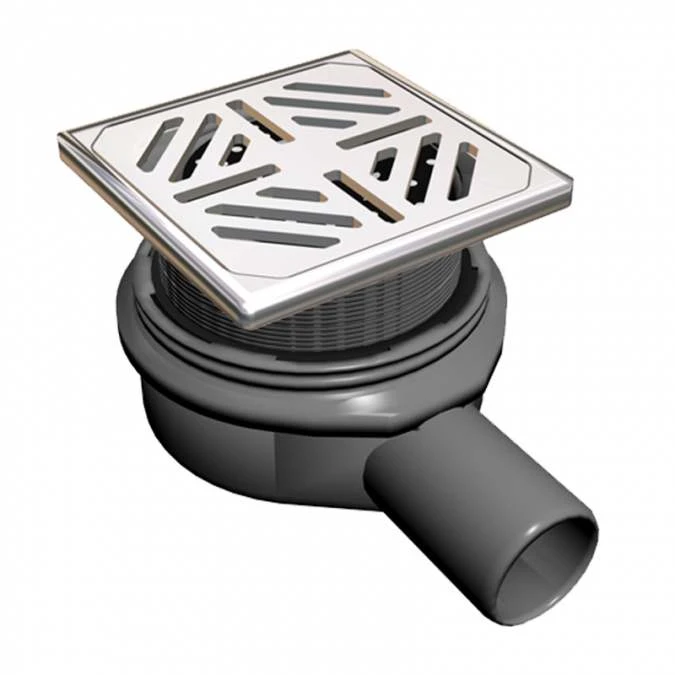

• Horizontal Shower Waste
• Board Fixing Adhesive
• Waterproof Joint Sealing Tape
• Waterproof Internal Corners
• Adhesive Trowel
• Protective Glove
