Abacus Level Access Wetroom Kit 1200 X 1200mm Centre Waste

Level Access Wet Room Shower Tray & Kit 1200 x 1200mm Square Centre Drain

Installation Instructions Click Here

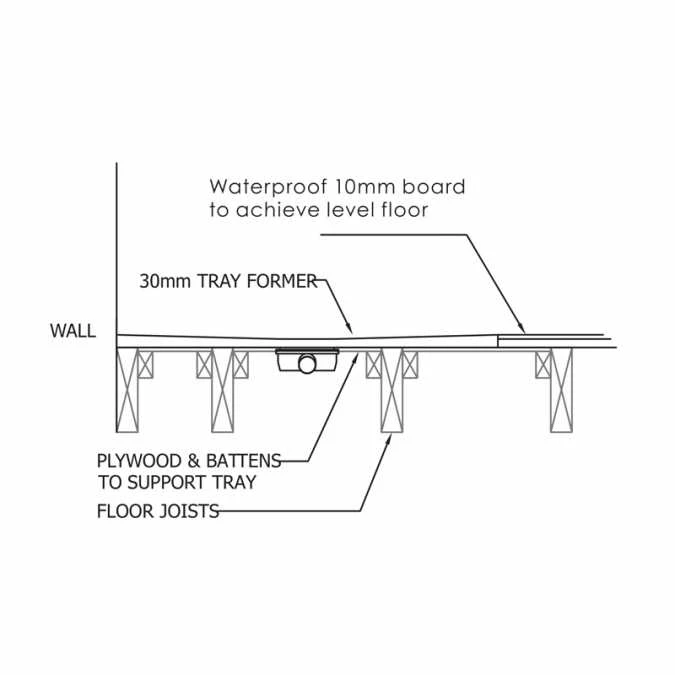

The shower tray is 30mm high and is typically recessed into timber floors. The drain must be able to sit between the joists or in a channel on a screeded floor. The waterproof boards are 10mm high.

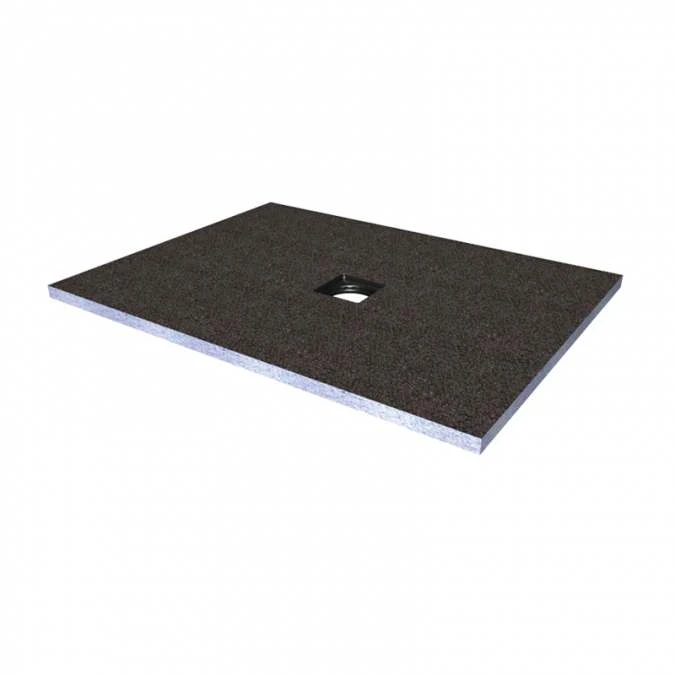

Constructed from a high quality structural hard foam, the Level Access Wet Room Shower Floor is humidity resistant and has a special mortar coating with a glassfibre reinforcement. It is light, strong and an ideal substrate to tile on to.

NB: We recommend the use of 10mm Elements board on the rest of the floor prior to tiling. This is for waterproofing stability of tiles and insulation.

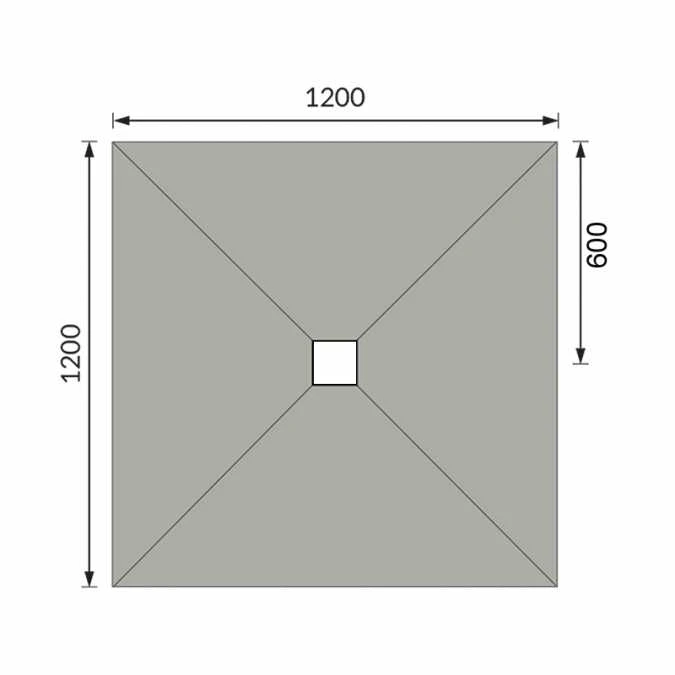

• Shower Tray – 1200 x 1200 x 30mm
• Previous Model EMST-05-8510
• Square Centre Drain

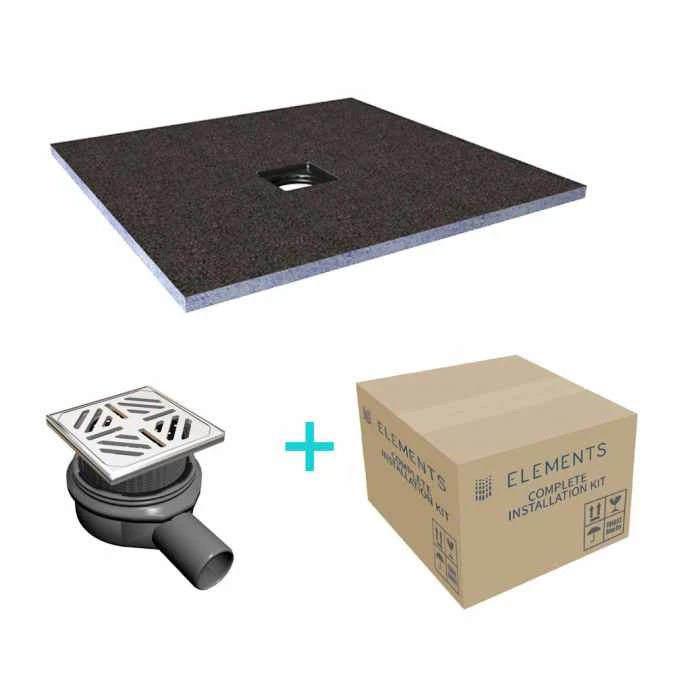

• Installation Kit and Waste/Trap Included

Note:
Suitable for both timber and screeded floors

Installation Kit includes

• Flexible Waterproof Tape Adhesive
• Wood Floor Primer

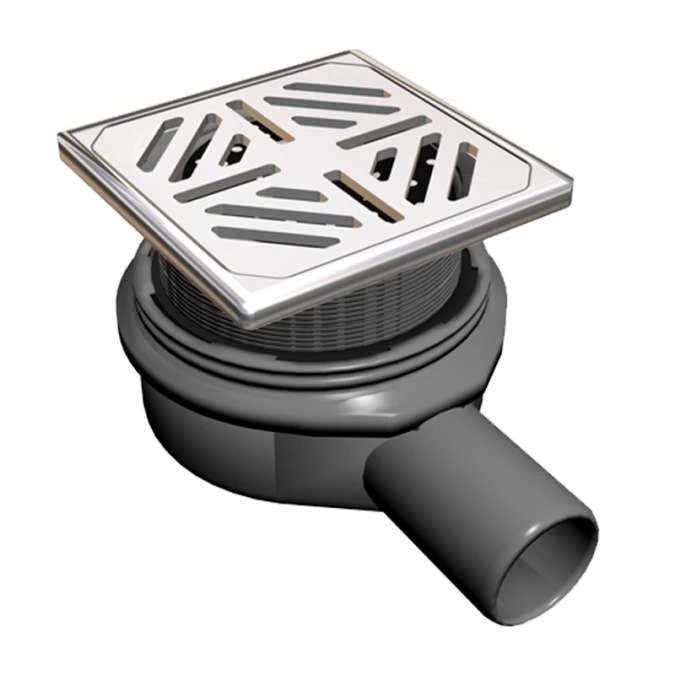

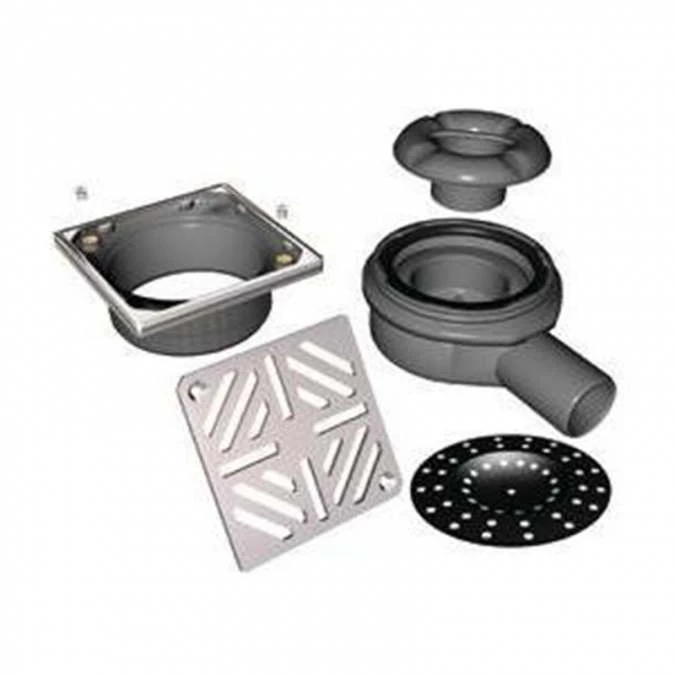

• Horizontal Shower Waste
• Board Fixing Adhesive
• Waterproof Joint Sealing Tape
• Waterproof Internal Corners
• 35mm Fixing Washers & Screws
• Adhesive Trowel
