Abacus Raised Linear Wetroom Kit 1 – 1850 X 900mm

Abacus Raised Linear Waste Wetroom Kit 1L 1850 x 900mm EMK3-15-1809

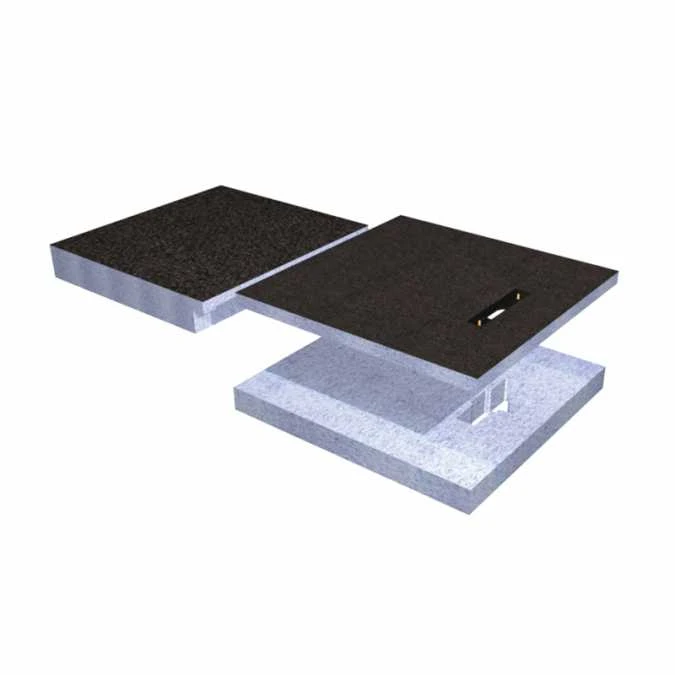

• Shower Tray – 900 x 900mm

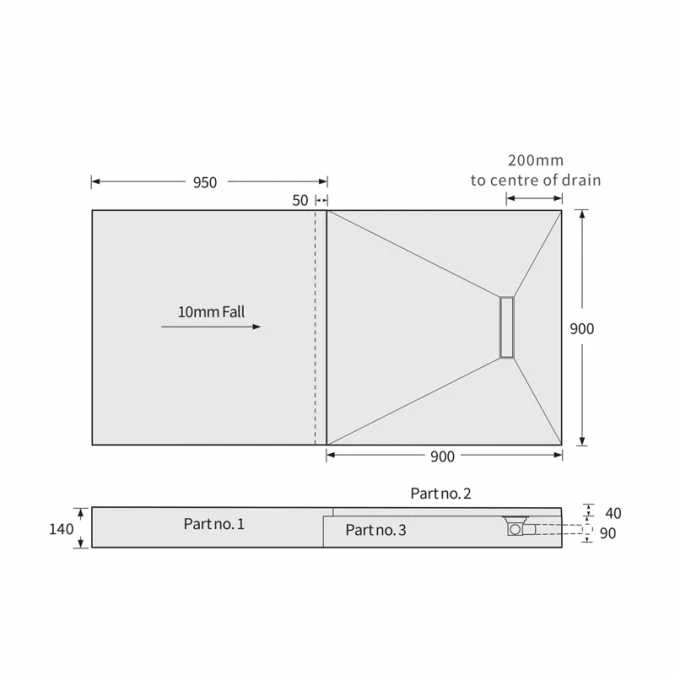

• Overall Size 1850 x 900 x 130/140mm
• Linear Drain
• Shower Tray Substrate – 900x900mm
• Extension Board with 10mm Fall – 950x900mm
• Formally Known As EMAP-05-1050

Note:
Can be raised in height to increase drainage runs.
Trays can be reduced in length and width by cutting with a hand saw.
We do not recommend cutting more than 80mm off each side of the tray when reducing width.
Tray lengths can be extended by purchasing an additional extension kit.

Data Sheet Click Here

Installation Kit Includes

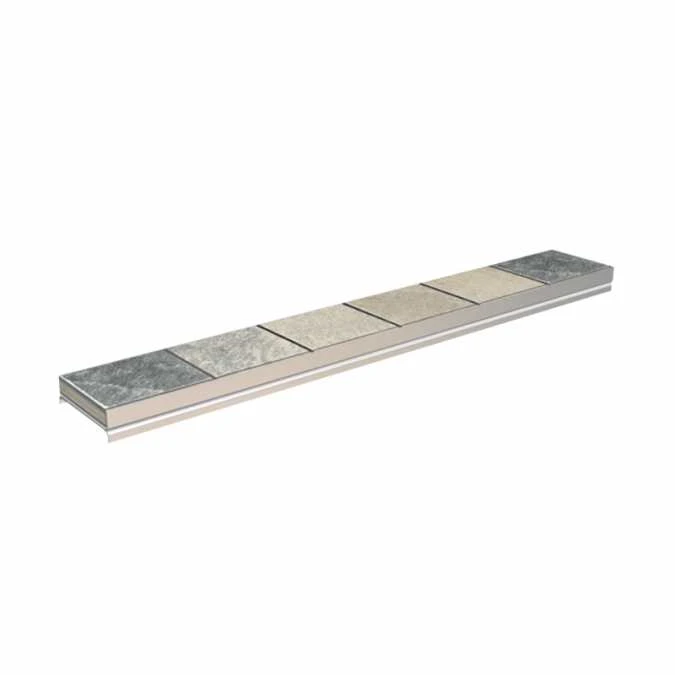

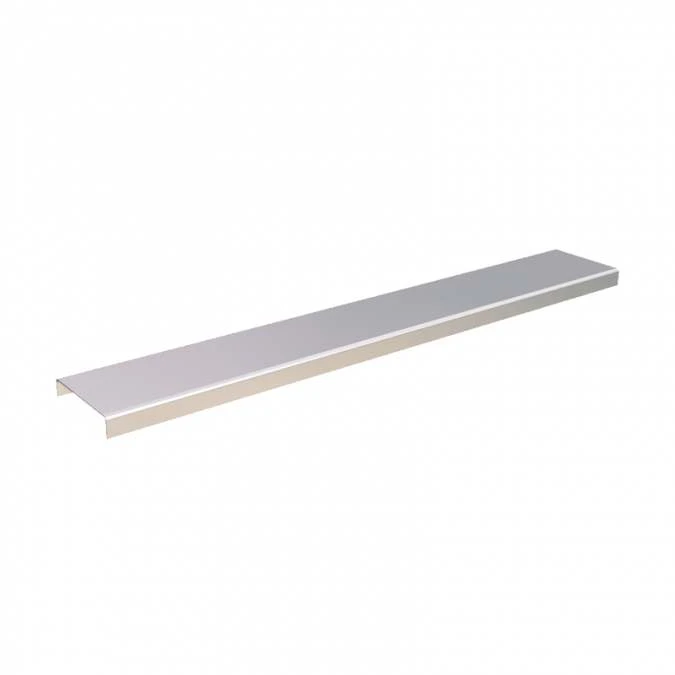

• Stainless Steel Linear Drain Cover Plate
• Flexible Waterproof Tape Adhesive
• Wood Floor Primer

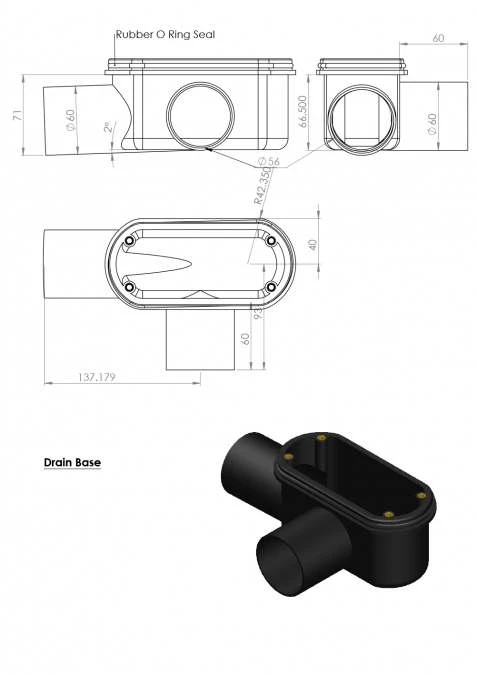

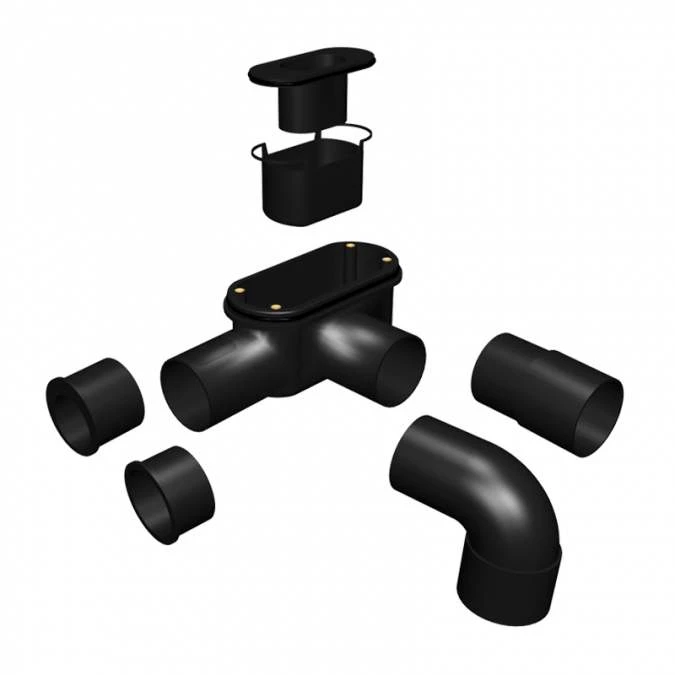

• Horizontal Shower Waste
• Board Fixing Adhesive
• Sealing & Mounting Adhesive
• Waterproof Joint Sealing Tape
• Waterproof Internal Corners
• Tile Guide
• Paint Brush
• Notched Trowel
• Protective Gloves
