Scudo Wall Hung Toilet Fixing Frame And Cistern

Scudo Wall Hung Toilet Frame, Cistern and Chrome Flush Plate

The Scudo dual flush concealed wall hung toilet frame and cistern is perfect for use with wall hung toilets.

Upgrade your bathroom experience today with the Wall Hung Toilet Fixing Frame. It’s the perfect combination of style, functionality, and durability, designed to transform your bathroom into a haven of modern luxury. Say goodbye to floor-mounted eyesores and hello to a more spacious, stylish, and efficient bathroom.

With a number of flush plate options, you can look to match up your taps and other fixtures and fittings in the bathroom too. Select from a square or round button design with the option of a Chrome, Black, Brushed Brass or Brushed Bronze flush plate using the drop down menu above.

Elevate your bathroom decor and enjoy the benefits of wall-hung toilet technology. Order our Wall Hung Toilet Fixing Frame now and experience the difference for yourself!

Scudo Wall Hung Toilet Frame Features:

• Expertly Designed for Ease of Installation
• Cost Saving Wall Hung Frame and Concealed Cistern Kit
• Chrome Flush Plate Provided As Standard
• Optional Colour Match Flush Plate for Matching with Other Fixtures and Fittings
• Silent Water Filling
• Left & Right Inlet Locations
• Water Saving Dual Flush Mechanism
• 3 and 6 Litre Flushing Option
• Adjustable Height

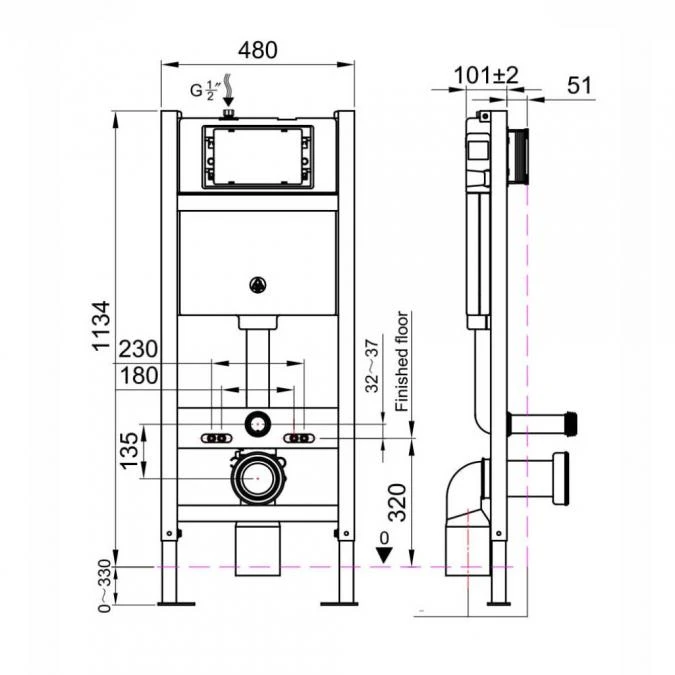

Scudo Wall Hung Toilet Frame Specifications:

• Height: Adjustable 1134 – 1464mm
• Width: 480mm
• Depth: 101mm
• Weight: 13.5Kg
• Operating Pressure: 0.2 – 10 Bar
• Construction: Galvanized Steel, ABS
• Weight Limit: 400Kg
• Product Code: WC-FRAME002

Please see data sheet and installation guide below for further info;

Datasheet

Installation Guide
